Pitbull Rake by Tubeline

Designed for Silage and Haylage


Pitbull Rakes are a versatile tool designed to move large amounts of material across a bunker silo with minimal disruption. The best of two approaches, the Pitbull Rake works like a dozer blade combined with the properties of a bucket allowing operators to not only push material but carry it as well.

Like a dozer blade the Pitbull Rake can push and pile material into the bunker due to its large push plate. With the addition of solid tines across the bottom and bale spears on each side, the rake also functions like a bucket, able to carry high capacities of material up the bunker. This makes it ideal for filling low spots or piling material along the bunkers edge.

When carrying material, the push plate can be advanced forward to slowly push silage off the tips of the tines, dropping material on the bunk without pushing it along the surface potentially disrupting previously packed material.

The high visibility design makes it easy for operators to see where the tines are improving operator accuracy when cutting down high spots as the final contour of your bunker is formed. The easy-to-use flexible design of the Pitbull Rake makes it the best equipped tool for filling and shaping your bunker.

Pitbull Dozer Blades

Features

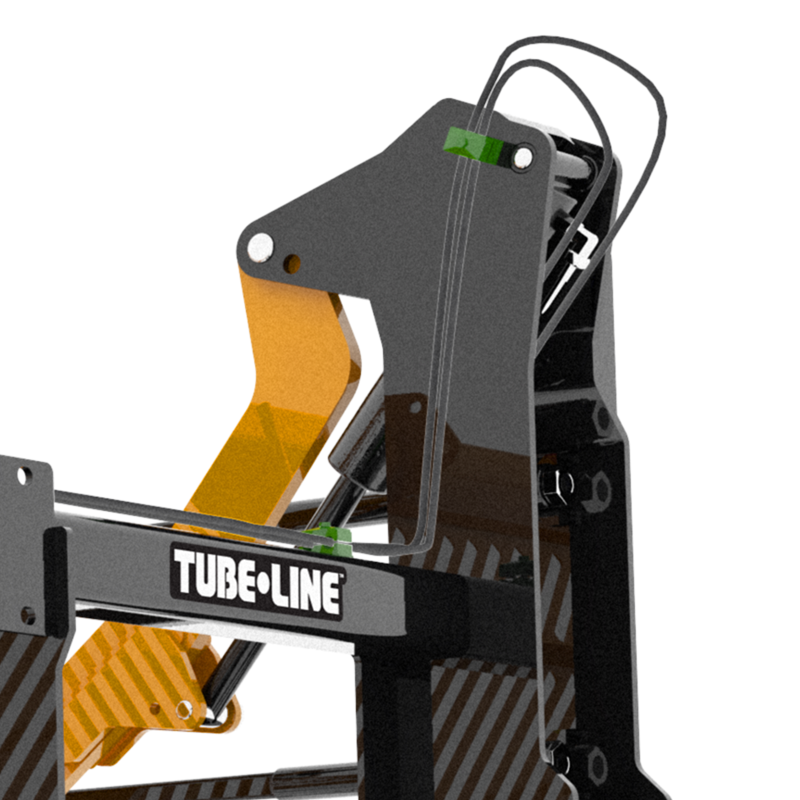

Hydraulics

Hydraulics

Hydraulic power passes through a 50/50 flow divider to power the two hydraulic cylinders engaging the push plate.

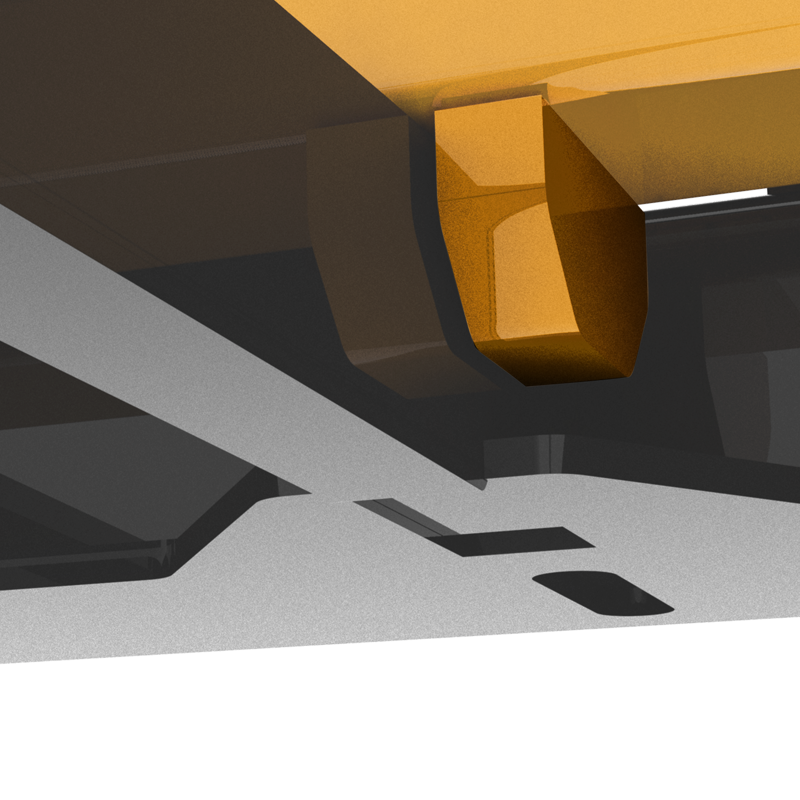

Push Plate Guides

Push Plate Guides

The push plate guides ensure smooth consistent action while the plate is being extended and retracted.

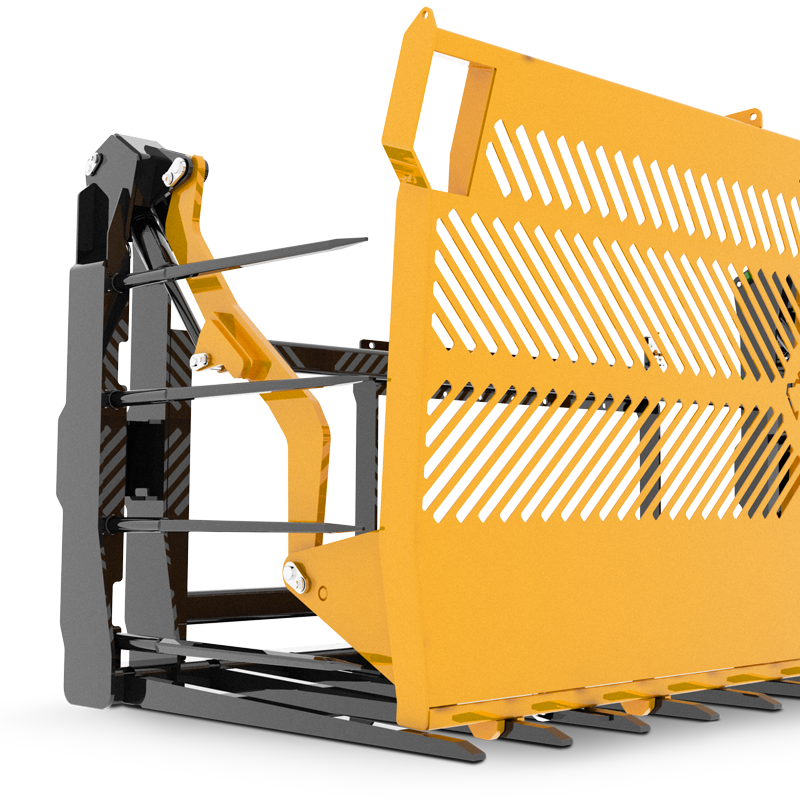

Push Plate

Push Plate

The large push plate is the heart behind the Pitbull rake. Extend it while loaded and the material drops off the tines onto the pile.

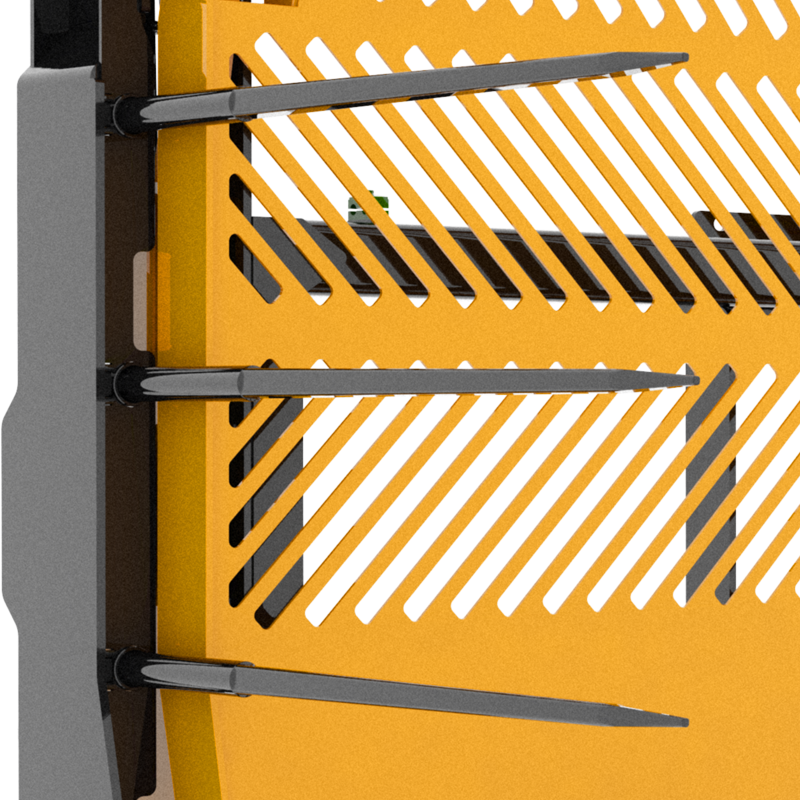

Bale Spears

Bale Spears

Mounted inside the frame to reduce scraping the bunker walls all while helping you carry a large load.

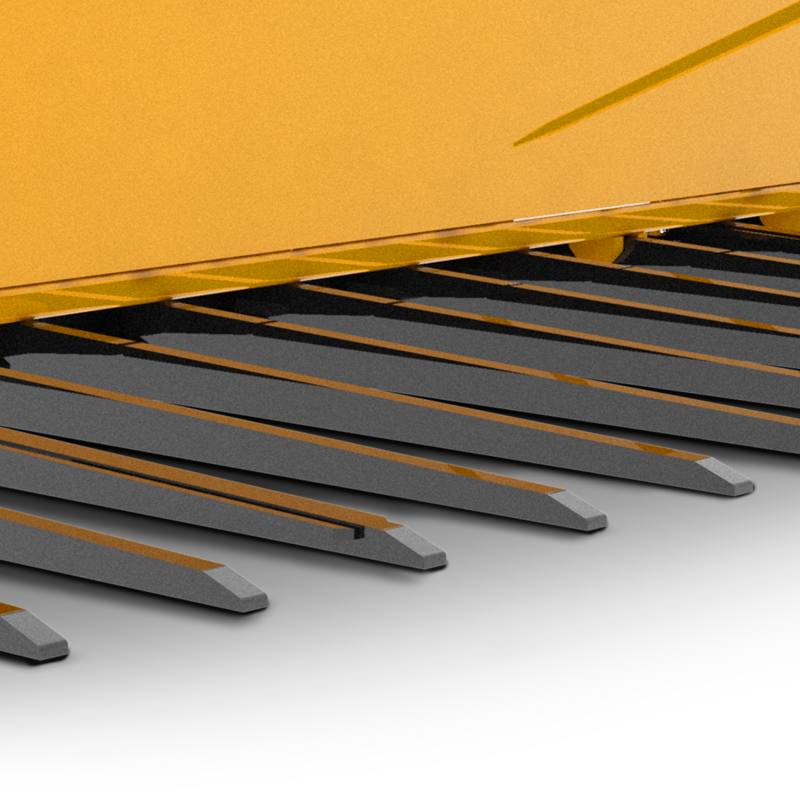

Tines

Tines

Easily pick up and manage material placement and are built to last with AR450 steel.

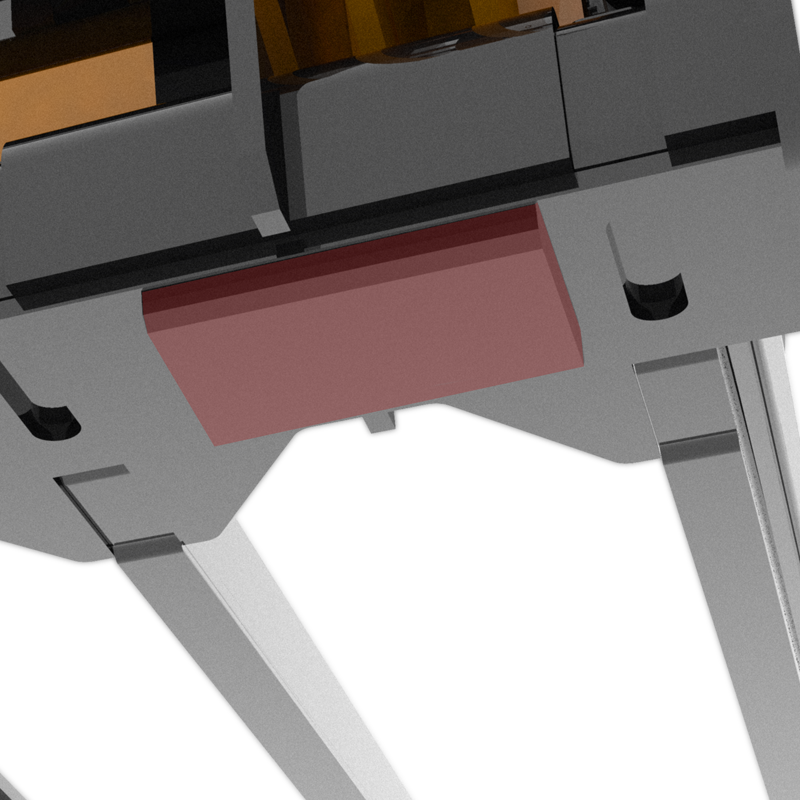

Wear Plates

Wear Plates

AR400 wear plates take the brunt of the abrasion when running over the ground.

2 Year Warranty

2-Year Warranty

Pitbull warrants to the original purchaser all products to be free from defects in material and workmanship for a period of two (2) years from the date of purchase.

Warranty Details

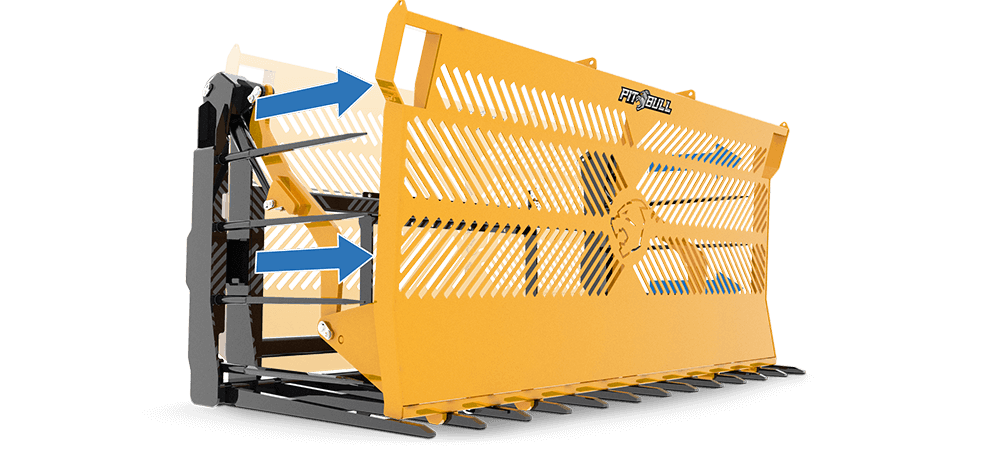

Push Plate

Ideal for 3PH mounted applications where adjustable pitch is often restricted, the push plate moves material off the tines to ensure efficient flow of material when needed the most.

Acton Shot

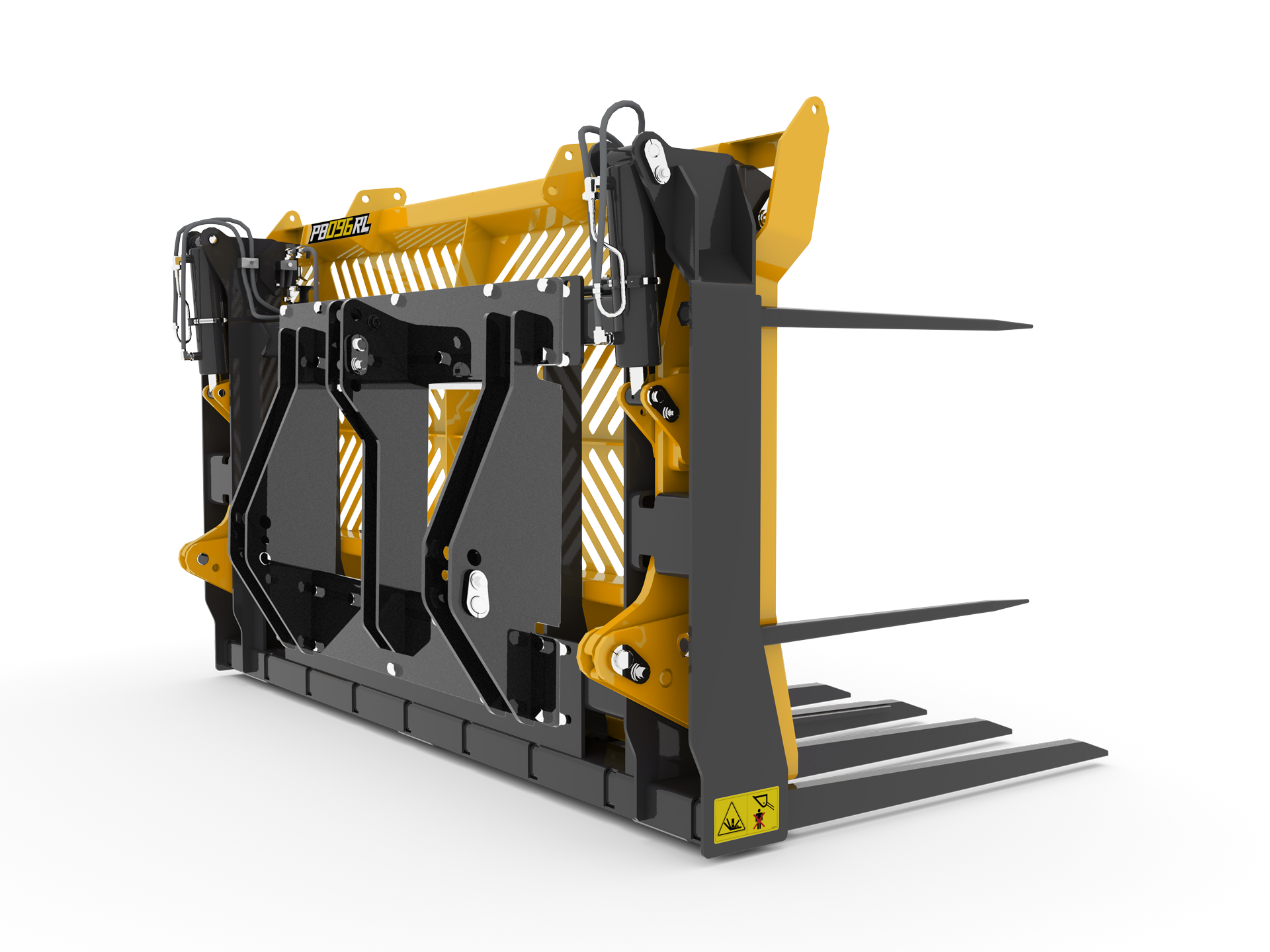

Bolt On Lugging

For maximum compatibility almost any lugging can be easily fitted to a Pitbull Rake.

Acton Shot
Acton Shot

Model Specifications

Silage Rake Model Specifications
Model Specifications
Model PB096R PB120R PB144R
Width 96" 120" 144"
Height 69" 69" 69"
Depth* 63.25" 63.25" 63.25"
Number of Tines 9 11 13
Tine Spacing 10" 10" 10"
Tine Dimensions 3.25" x 54.75" Tapered
Spears Dimensions 49" Conus 2
Weight (lbs.) 2,739 3,103 3,467

* Measurement doesn’t include equipment lugging.
